Damp proofing cable entry points: Drip loops, silicone sealing, and entry grommets

When installing data cables in environments prone to moisture or humidity, it is crucial to ensure the integrity of the cable entry points. This article will explore three essential techniques for damp-proofing cable entries: drip loops, silicone sealing, and entry grommets.

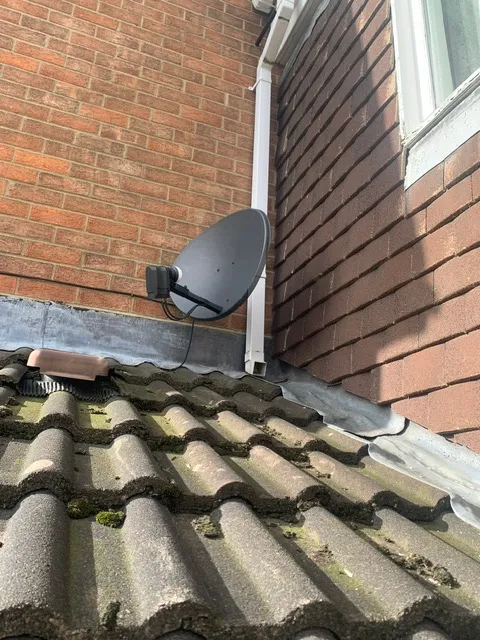

Drip Loops

A drip loop is a simple yet effective method to prevent water from entering the building through the cable entry point. It involves looping the excess cable before it enters the building, ensuring that any dripping water will flow down the outside of the cable, away from the entry point.

How to create a drip loop:

1. Measure and mark the desired length of the drip loop on your cable.
2. Carefully loop the cable back onto itself, ensuring the loop is at least 300mm long for most cables.
3. Secure the loop with cable ties or electrical tape, making sure not to tighten it too tightly to avoid damaging the cable.

Benefits:

• Easy to install and cost-effective
• Prevents water from entering the building through the cable entry point

Silicone Sealing

Silicone sealing is a reliable method of creating a watertight seal around cable entries. It involves applying a thick layer of silicone sealant around the cable and the entry point, ensuring no moisture can penetrate.

How to apply silicone sealing:

1. Clean the surface around the cable entry point with a damp cloth to remove any dirt or debris.
2. Apply a generous amount of silicone sealant around the cable and the entry point, making sure to cover all exposed areas.
3. Allow the silicone to cure for at least 24 hours before covering it with a splash guard or other protective material.

Benefits:

• Provides an excellent watertight seal
• Suitable for use in high-humidity environments

Entry Grommets

Entry grommets are metal or plastic rings designed to protect cable entries from moisture and abrasion. They are installed before the cables enter the building, creating a secure channel for the cables to pass through.

How to install entry grommets:

1. Choose the appropriate size of grommet for your cables.
2. Drill a hole slightly larger than the grommet in the wall or floor where you want to install it.
3. Insert the grommet into the hole and secure it with cable ties or other fasteners, ensuring that the grommet is flush with the surface.

Benefits:

• Offers protection against moisture and abrasion
• Helps organize cable entries
